Folding container

Item No.: 00098

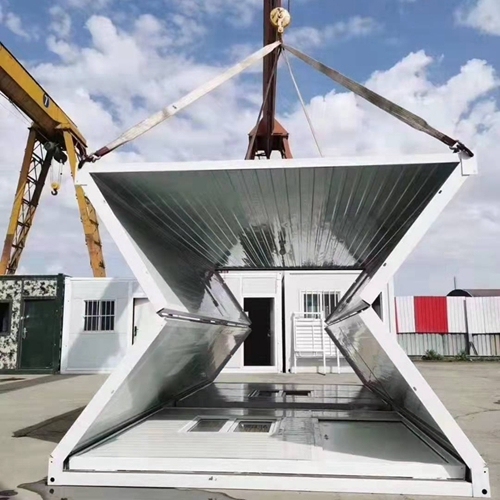

Flat pack container house is a modular construction product which based on a steel frame and light wall pane structure system. I is consists of top frame, bottom frame, 4 posts and 14 pieces exchangeable wall panels. It can be flattened for easy transport
Description Review
Description

Container house is a fashion trend product belong to prefab house system, each unit can be combined freely and collected with different shapes of roof , corridor, staircases, and decorated the interior and exterior appearance according to the user's preference. Moreover.The houses can be moved anytime and anywhere easily , to bring more convenient and comfortable life for people.


1. Folding Product Details


Basic Characteristics

Outside size (mm)

5800*2480*2560

Inner size (mm)

5640*2320*2420

Folded size (mm)

5800*2480*420/390

Total weight (kg)

1300







Design  Parameter

Structural design service life

10 years

Floor live load

200 kg/m*m

Roof live load

100 kg/m*m

Wind load

8 grade

Seismic fortification intensity

10 grade

Frame Construction

Q235B tube





Roof

Integral frame paint

Electrostatic spray/straight plastic powder

External roof

galvanized 0.8 mm

The internal ceiling

Caigang veneer V/830/0.37 mm

Floor

Fire resistant glass magnesium floor 15mm

Wall panel

75mm composite board 0.3mm+glass cotton+0.3mm

Windows

920*920 single glass push-pull window plastic steel window, glass thickness of 4mm

Security door

960*1970 High-quality security door



Electric

Including inlet 4² national standard soft copper wire, 20A circuit breaker 1, inlet socket 2.5, five-hole single-open socket 1,
air conditioner socket 1,LED lamp 1.



 2. Folding Container Product advantage
1) All the steel structures are galvanized & bake-painted.

2) All bolts are used, no welding is required.
3) All configuration power system.
4) Workers can install 1 unit in only 4 minutes.

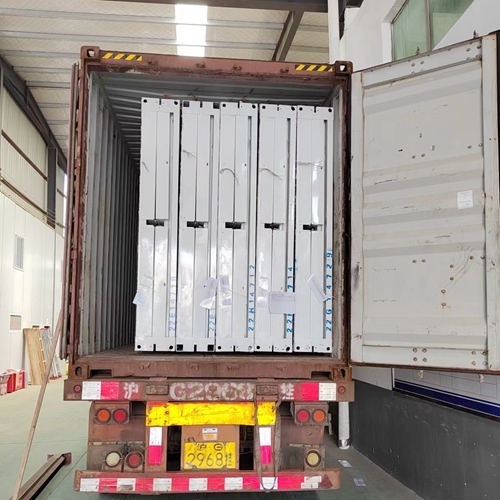

5) When is folded,the height is only 420 mm.40 HQ can load 10 -12 units.
6) It can save transportation, installation and storage cost.
7) Fire proof,water proof,corrosion-resistant,sound-insulation.

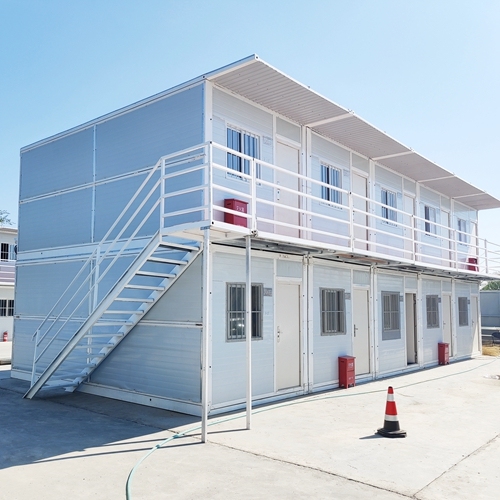

8) Can be connected to each other and make lager room.
